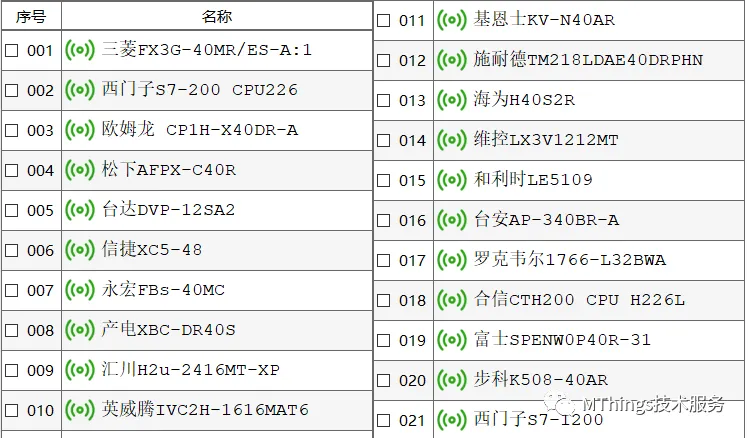

本文引用https://blog.csdn.net/w181108233/article/details/124734830,介绍21款常见PLC设备的寄存器配置实例,并附摩尔信使MThings数据配置截图。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图1 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图1](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

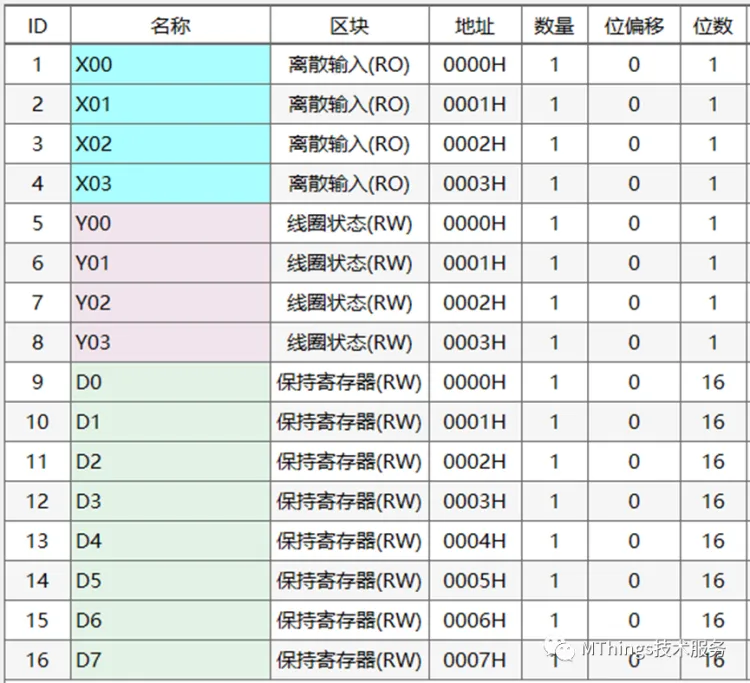

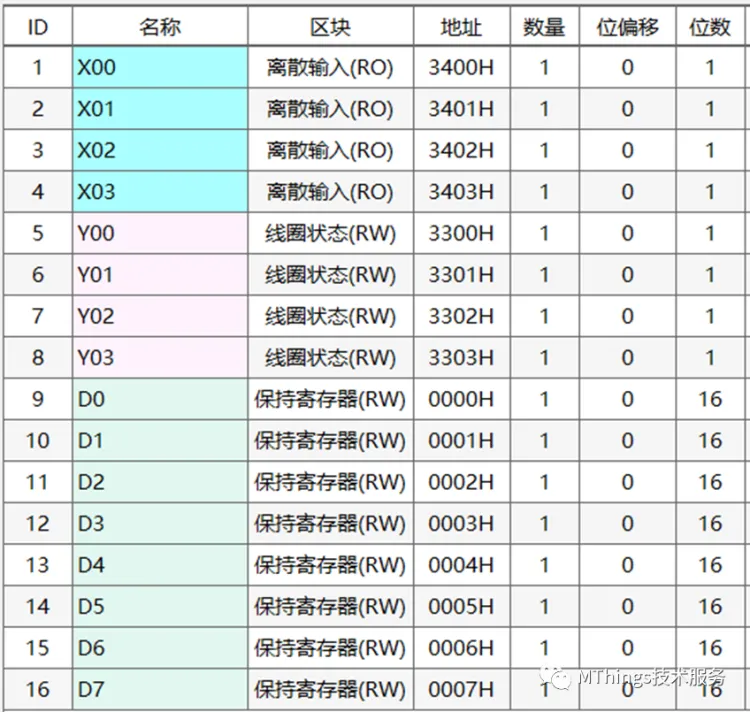

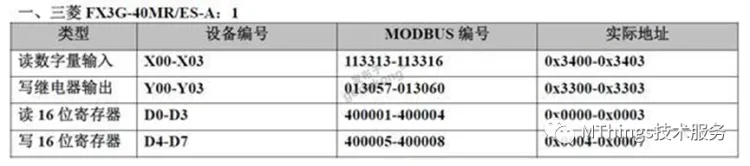

1、三菱FX3G-40MR/ES-A:1
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。

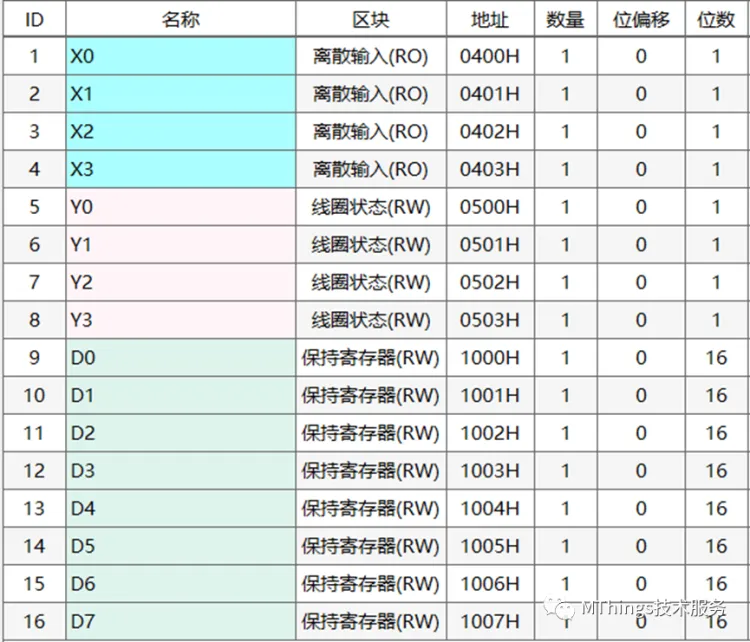

![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图3 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图3](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图5 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图5](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

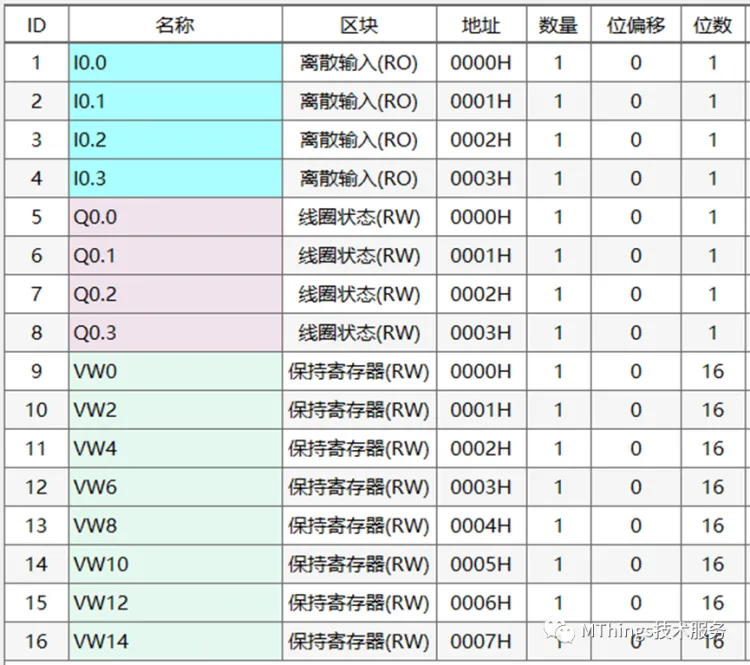

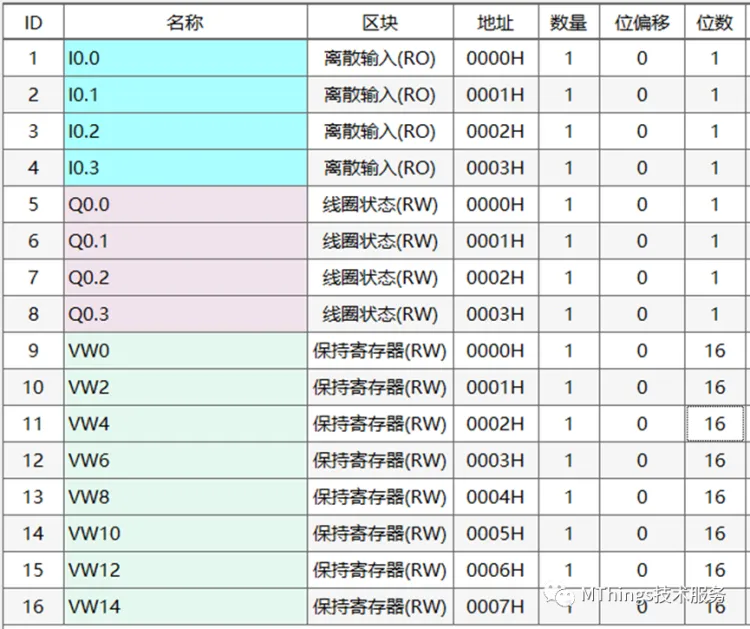

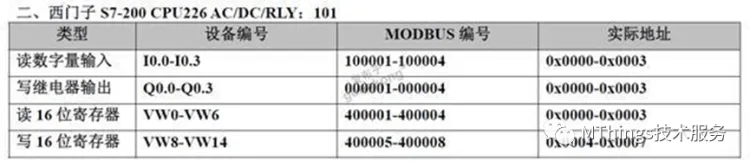

2、西门子S7-200 CPU226
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、05、15功能码;
V元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图7 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图7](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图9 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图9](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

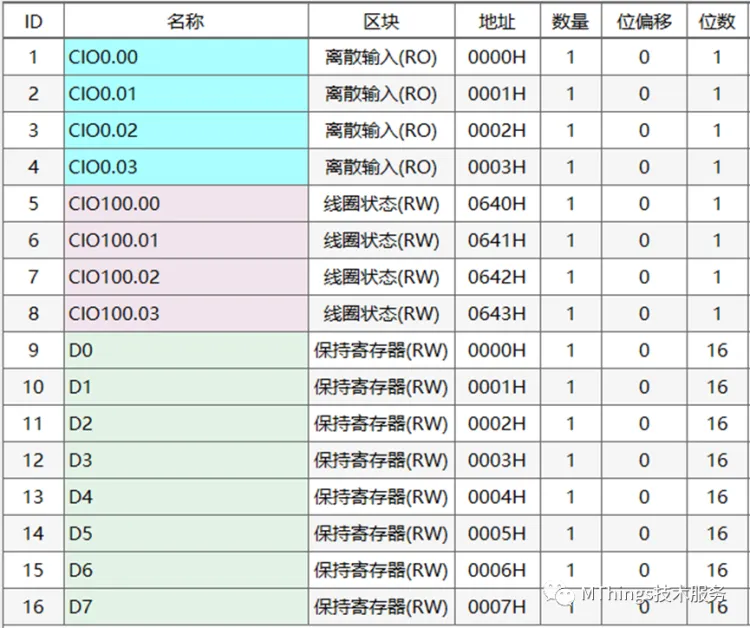

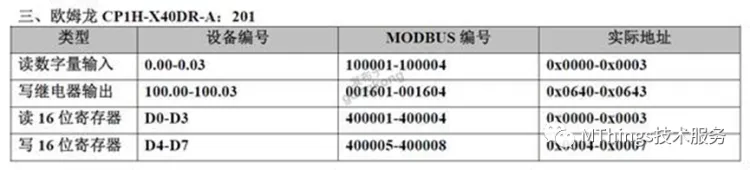

3、欧姆龙CP1H-X40DR-A
CIO0元件支持Modbus之02功能码;
CIO100元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图11 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图11](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图13 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图13](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

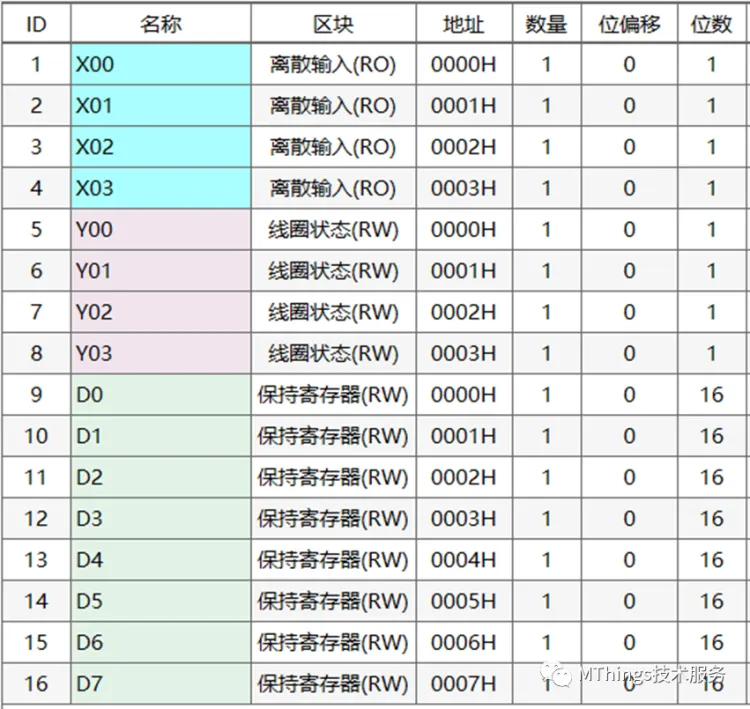

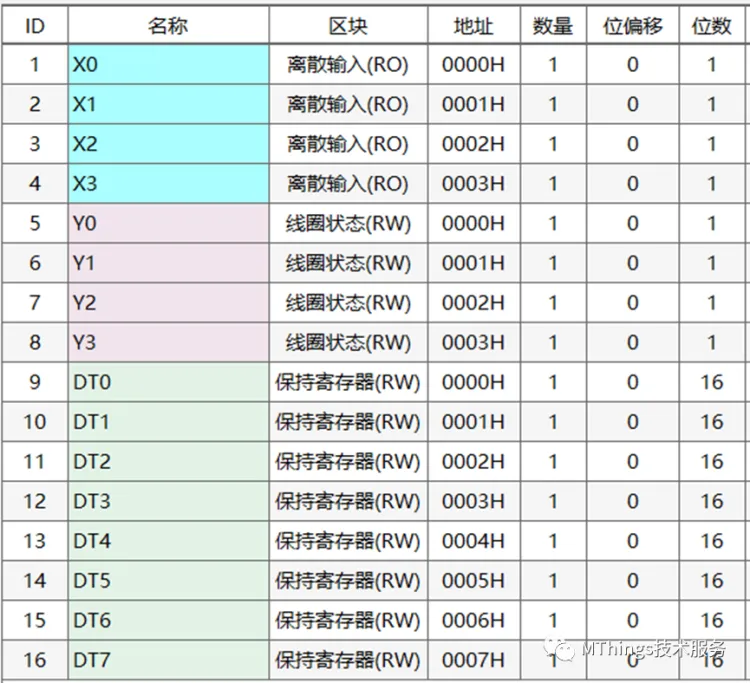

4、松下AFPX-C40R
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
DT元件支持Modbus之03、06、16功能码。

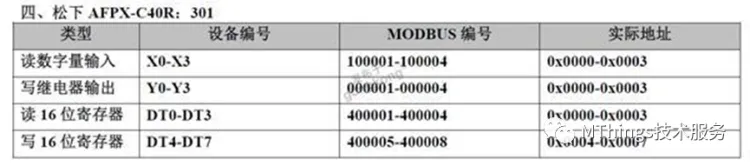

![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图15 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图15](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图17 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图17](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

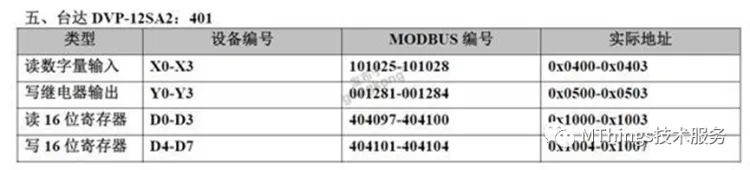

5、台达DVP-12SA2
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图19 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图19](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图21 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图21](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

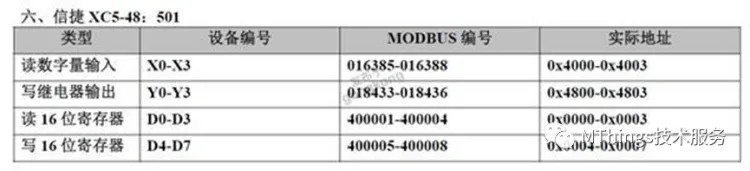

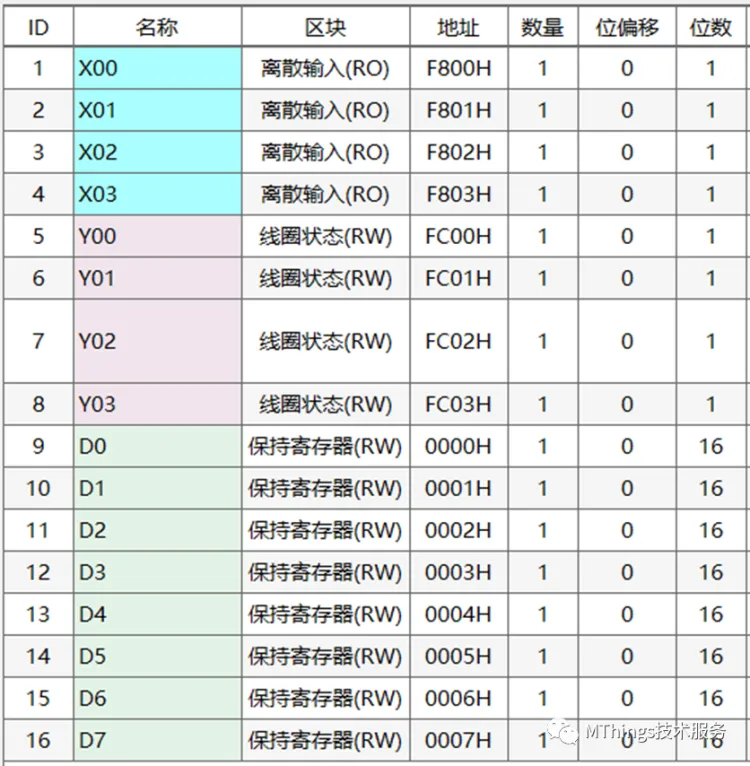

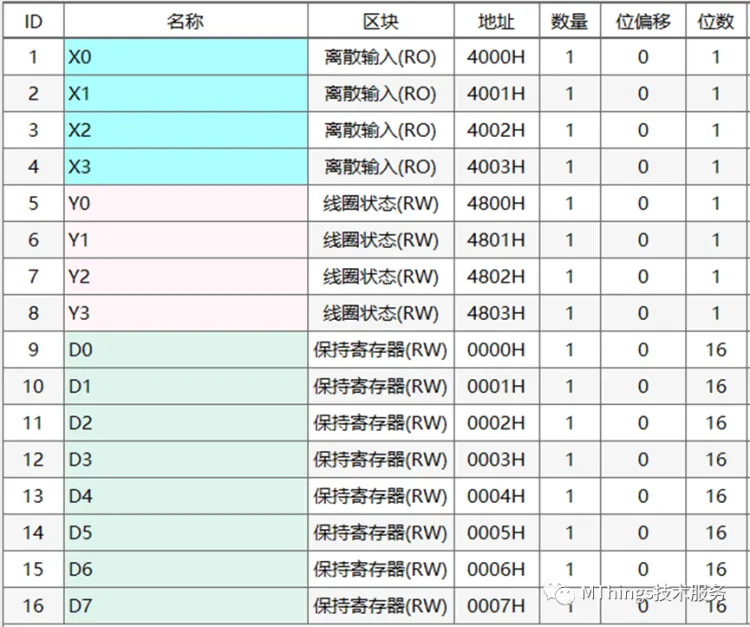

6、信捷XC5-48
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图23 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图23](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图25 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图25](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

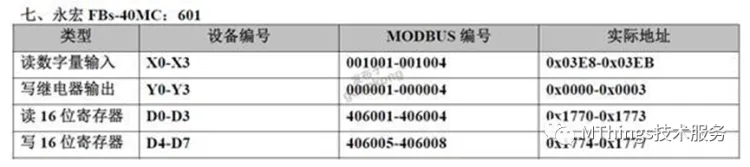

7、永宏FBs-40MC
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。

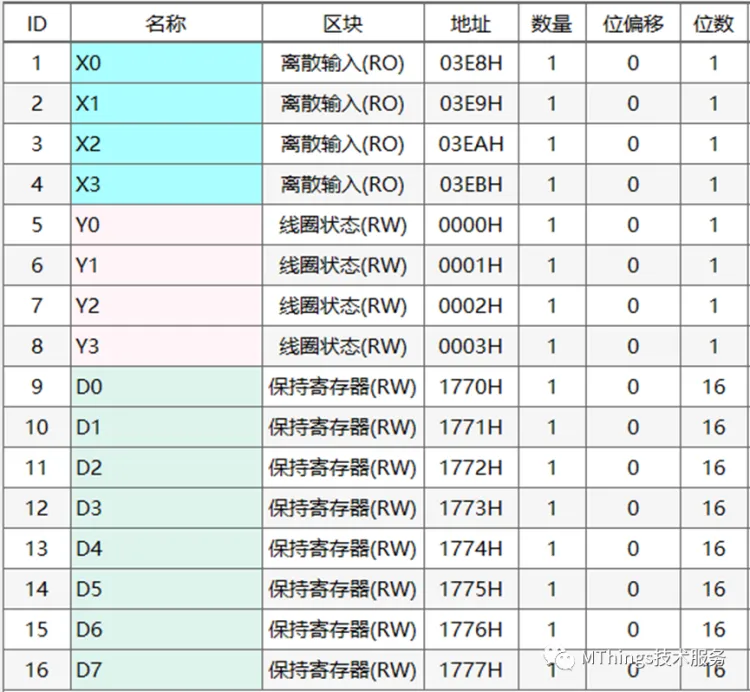

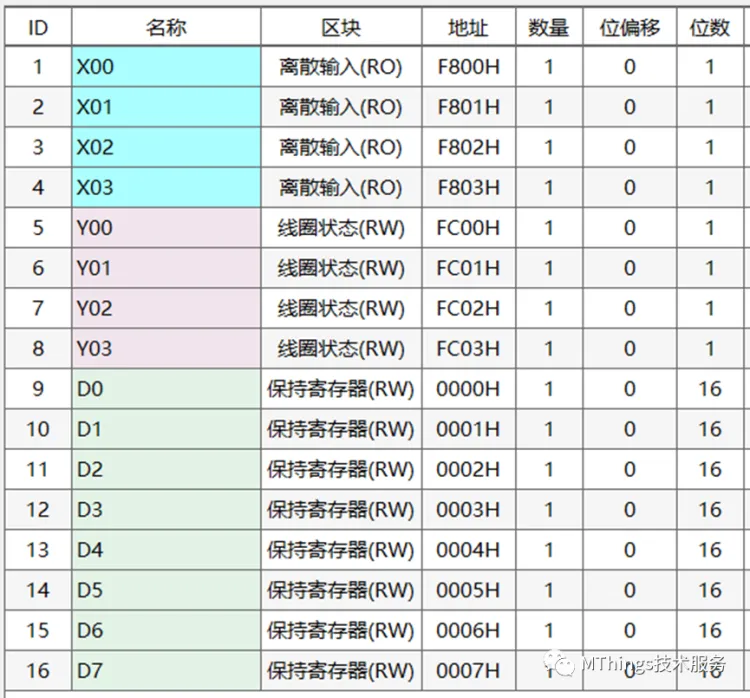

![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图27 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图27](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图29 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图29](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

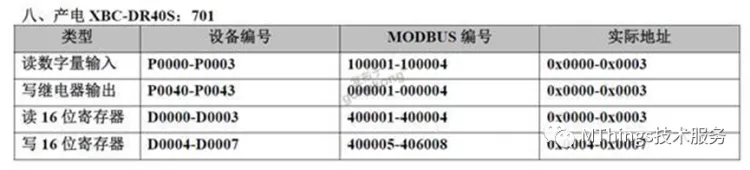

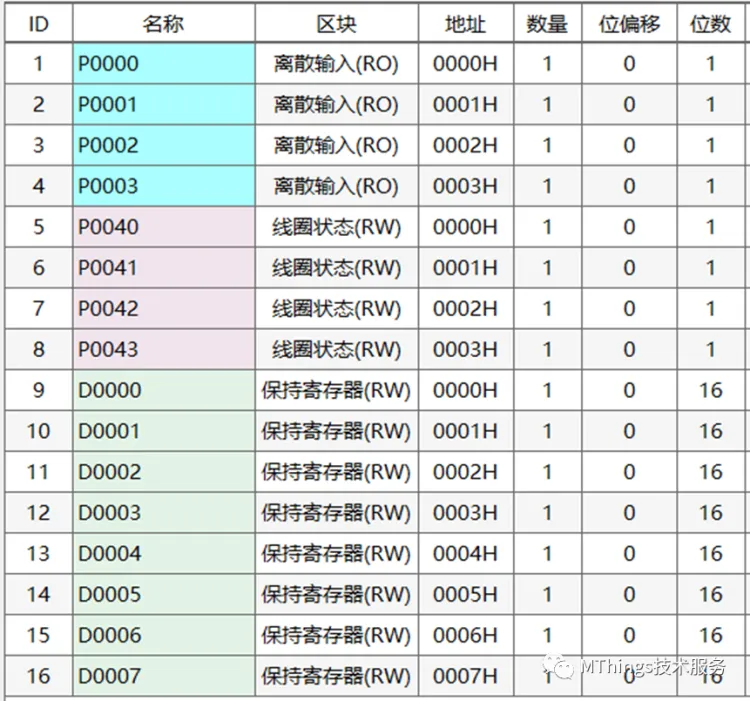

8、产电XBC-DR40S
P0元件支持Modbus之02功能码;
P40元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图31 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图31](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图33 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图33](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

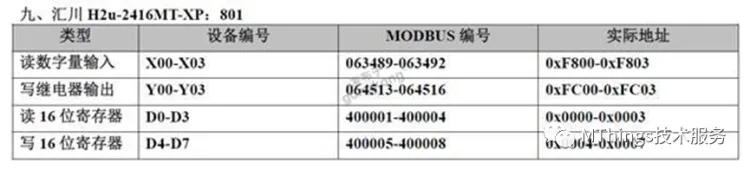

9、汇川H2u-2416MT-XP
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图35 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图35](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图37 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图37](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

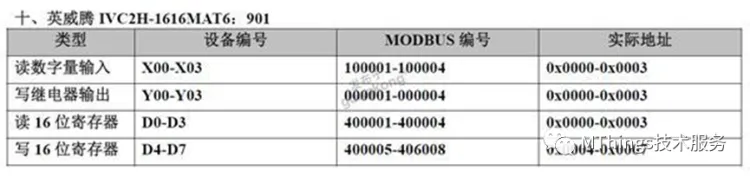

10、英威腾IVC2H-1616MAT6
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图39 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图39](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图41 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图41](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

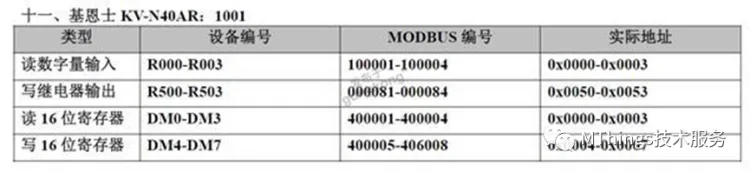

11、基恩士KV-N40AR
R0元件支持Modbus之02功能码;
R500元件支持Modbus之01、05、15功能码;
DM元件支持Modbus之03、06、16功能码。

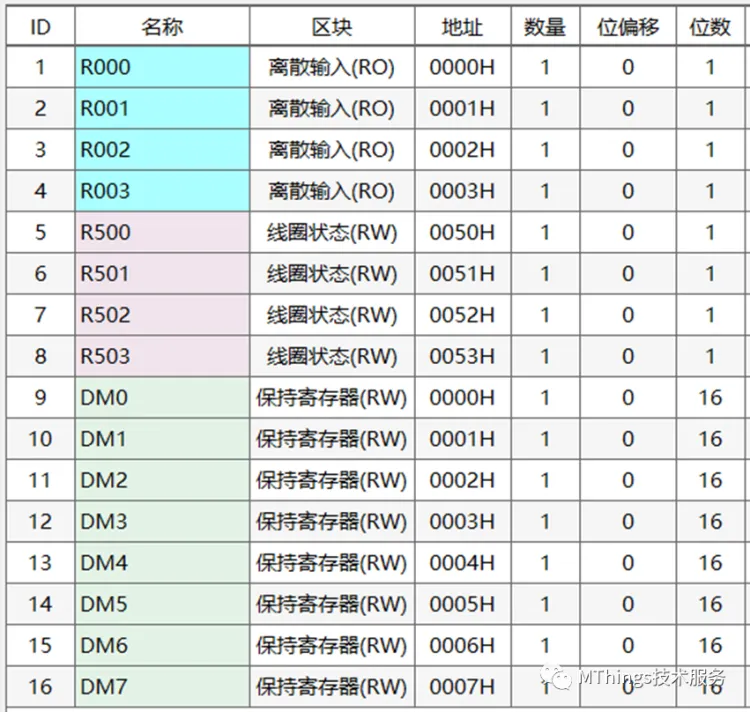

![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图43 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图43](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图45 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图45](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

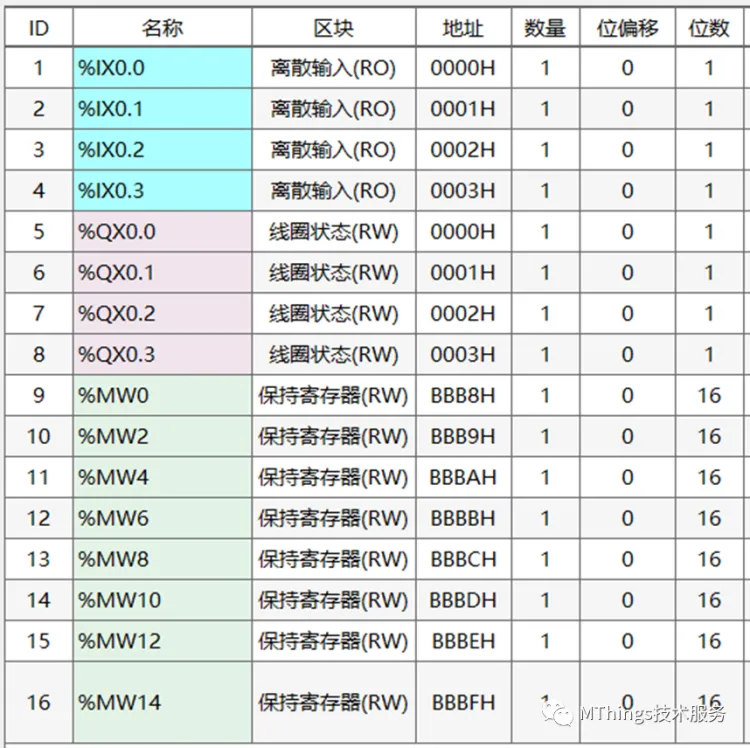

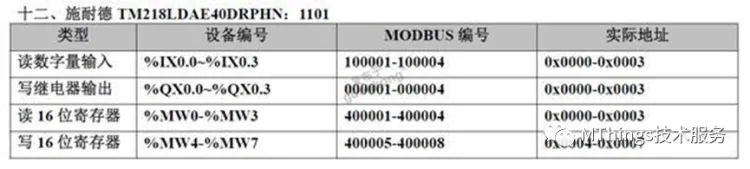

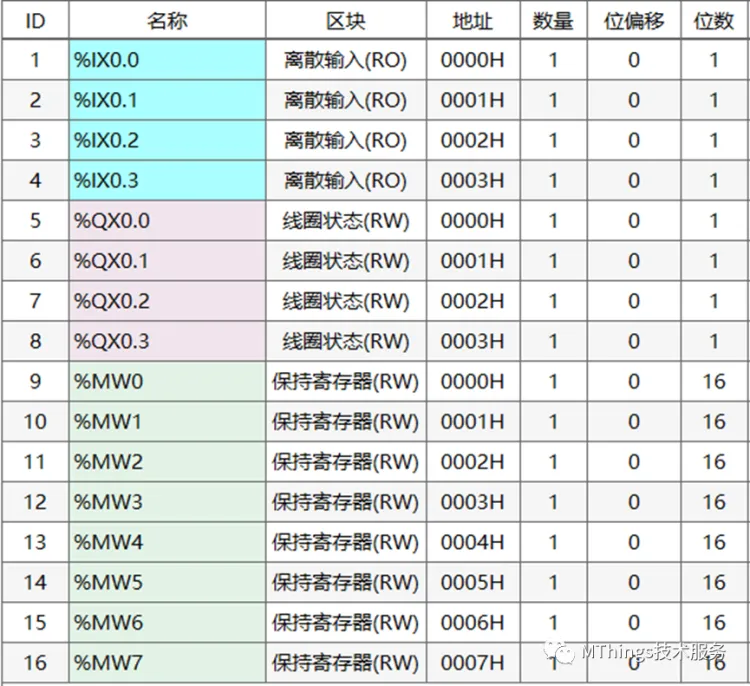

12、施耐德TM218LDAE40DRPHN
更新固件后支持01、02、15功能码
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、15功能码;
M元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图47 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图47](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图49 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图49](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

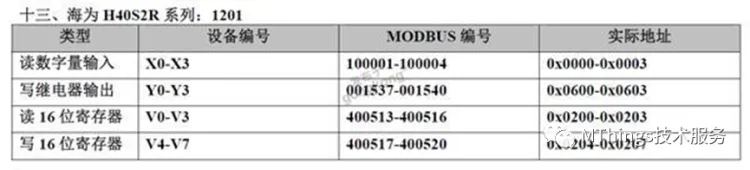

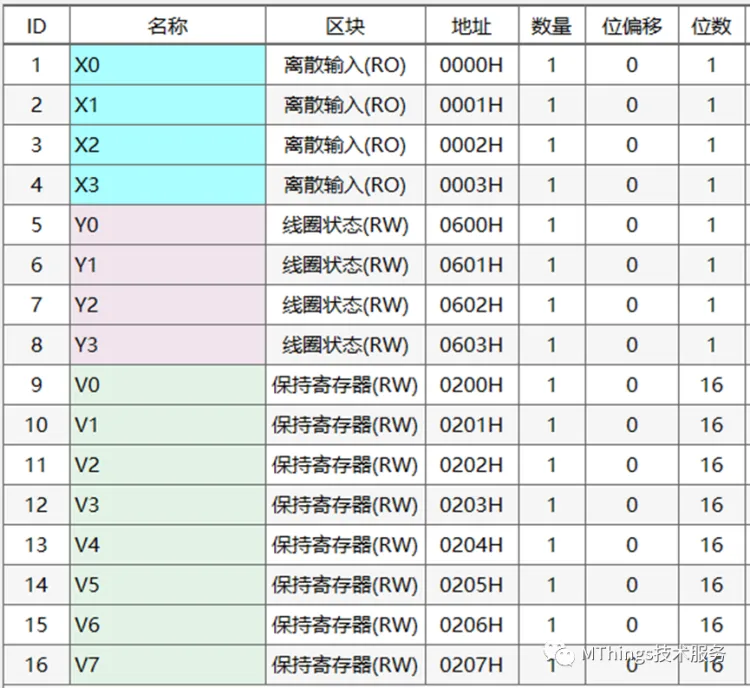

13、海为H40S2R
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图51 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图51](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图53 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图53](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

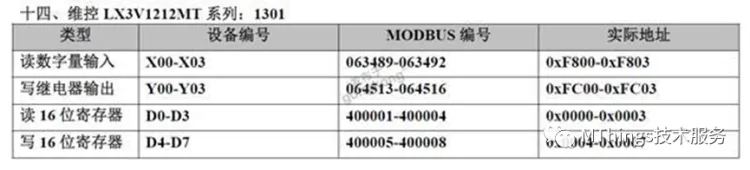

14、维控LX3V1212MT
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图55 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图55](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图57 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图57](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

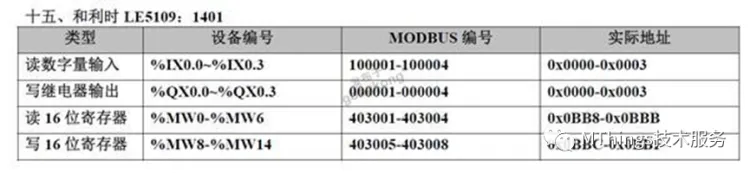

15、和利时LE5109
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、05、15功能码;
M元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图59 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图59](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

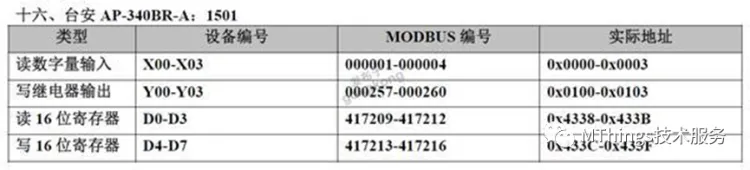

![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图61 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图61](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

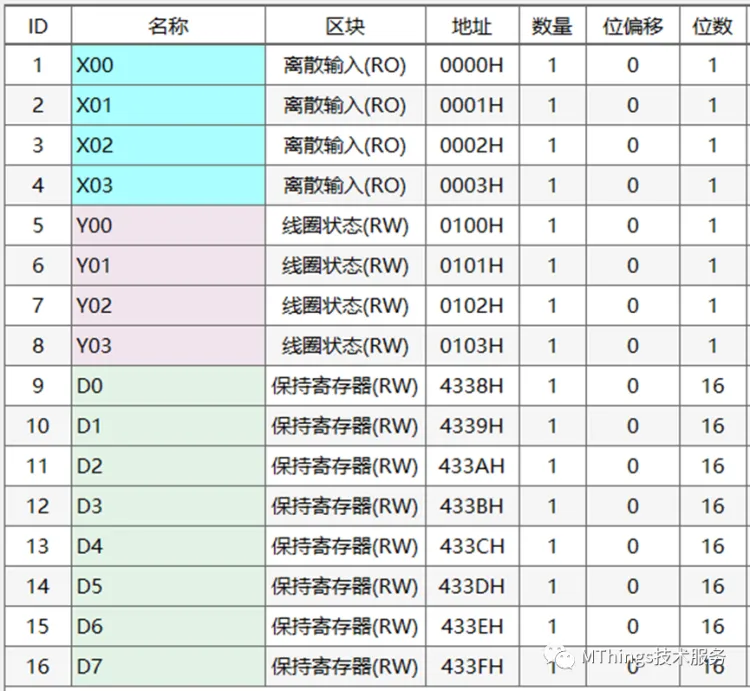

16、台安AP-340BR-A
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、05、15功能码;
D元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图63 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图63](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图65 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图65](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

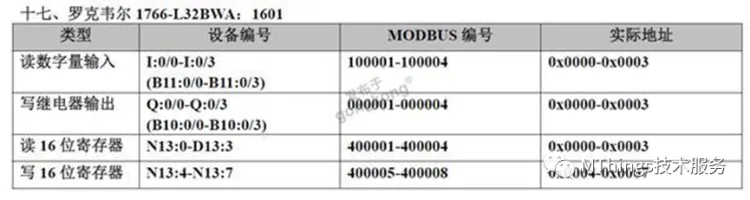

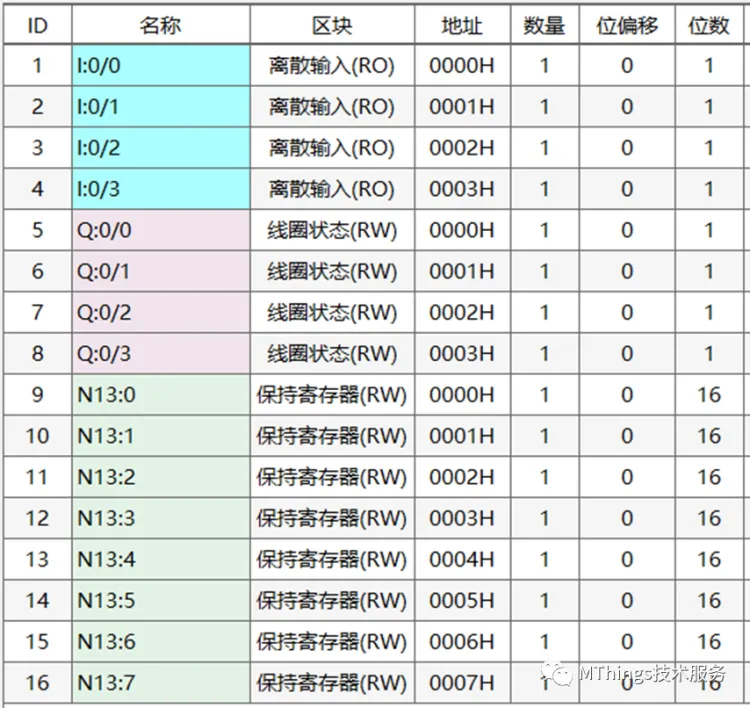

17、罗克韦尔1766-L32BWA
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、05、15功能码;
N元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图67 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图67](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图69 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图69](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

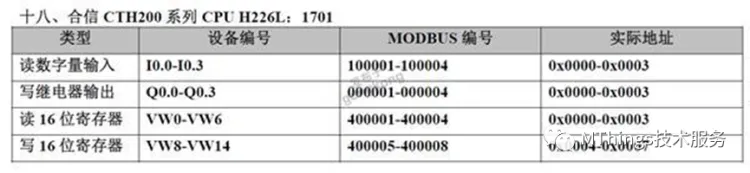

18、合信CTH200 CPU H226L
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、05、15功能码;
V元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图71 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图71](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图73 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图73](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

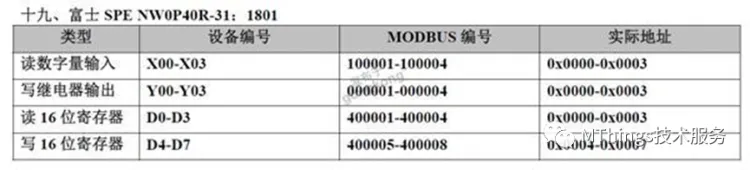

19、富士SPENW0P40R-31
X元件支持Modbus之02功能码;
Y元件支持Modbus之01、15功能码;
D元件支持Modbus之03、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图75 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图75](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图77 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图77](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

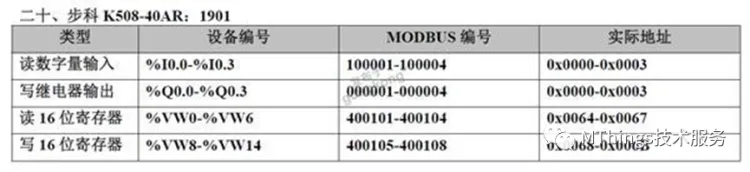

20、步科K508-40AR
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、05、15功能码;
V元件支持Modbus之03、06、16功能码。

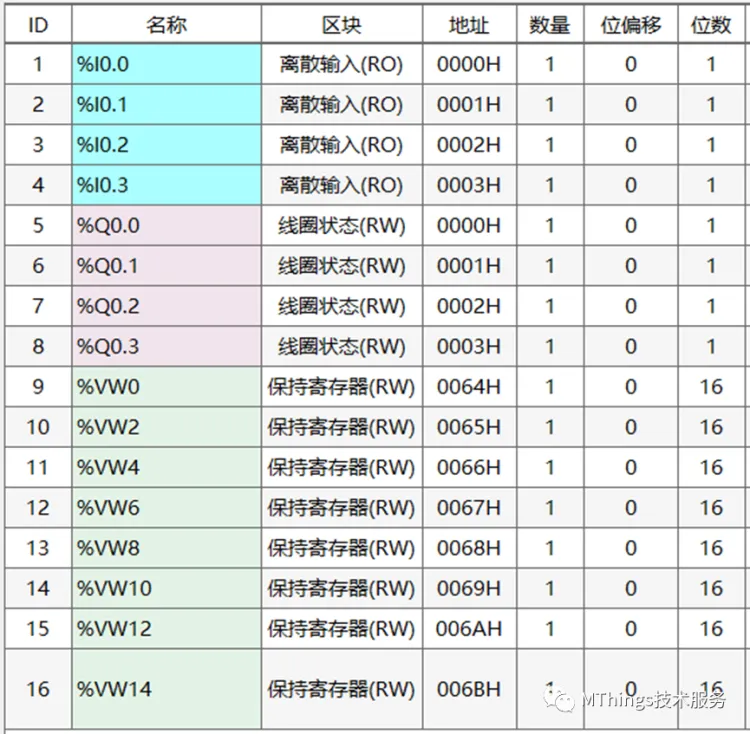

![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图79 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图79](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图81 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图81](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)

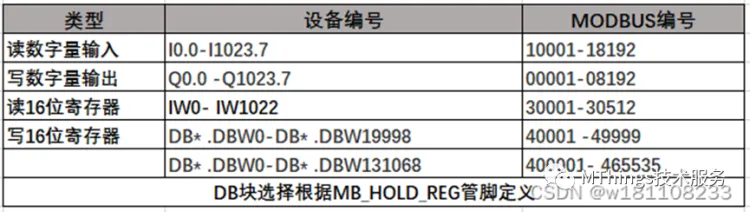

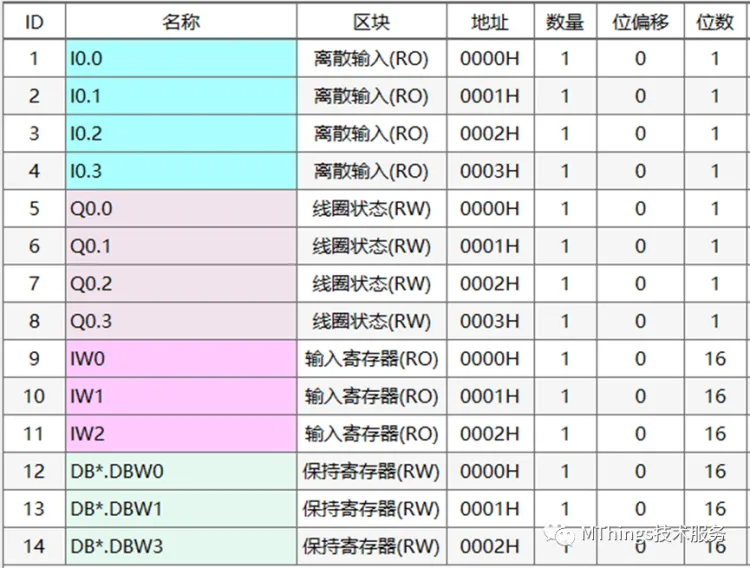

21、西门子S7-1200
I元件支持Modbus之02功能码;
Q元件支持Modbus之01、05、15功能码;
V元件支持Modbus之03、06、16功能码。
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图83 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图83](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
![摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图85 摩尔信使(MThings)常用PLC寄存器配置实例(附图)插图85](https://www.modbus.cn/wp-content/themes/module/themer/assets/images/lazy.png)
