Description
Product Overview
Atmospheric visibility is one of the meteorological elements, which measures the clarity of visible targets in the horizontal direction. Modbus atmospheric visibility measurement instrument is an instrument used to measure atmospheric visibility, which can be widely applied in road meteorological information systems, fog detection networks, airport meteorological systems, cooling tower smoke detection, meteorological monitoring, port safety and other fields.
Product Features

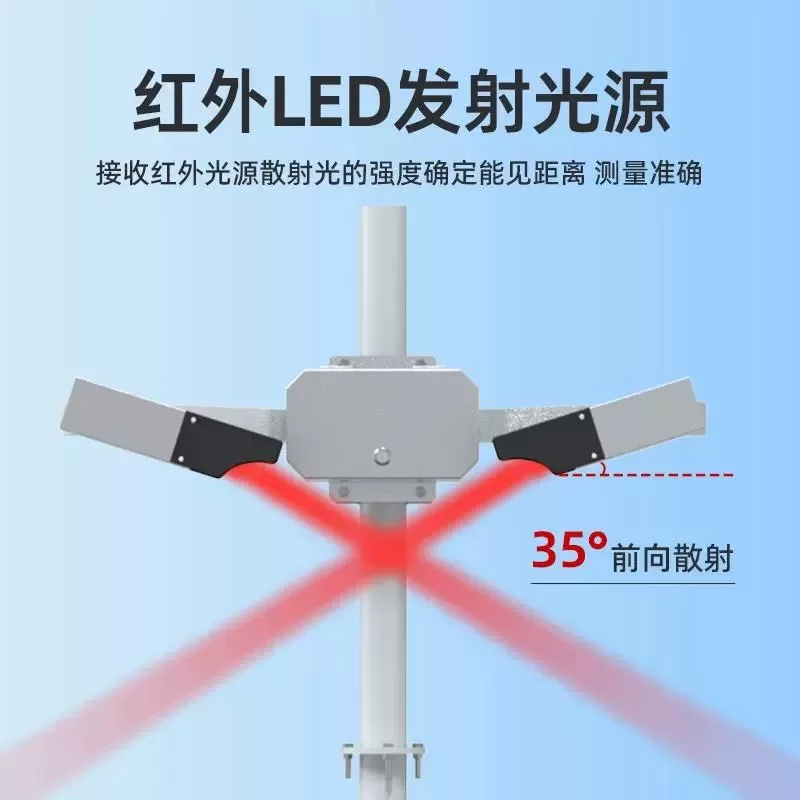

- High measurement accuracy: using the principle of 35 ° forward scattering, the measurement accuracy can reach ± 10%.
- Good stability: simple structure, good stability, high reliability, low energy consumption, and easy use and maintenance.
- Strong anti-interference ability: Infrared LED light source, added filter design, anti light source interference, equipment surface anti-corrosion treatment, anti rainwater corrosion, internal circuit anti-interference design.
- Complete function: It can continuously measure and output atmospheric visibility, and the DC power supply circuit of the instrument has a dual design of anti reverse connection and self recovery insurance.
Main Technical Indicators
| Parameter Name | Indicator |
|---|---|
| Power Supply | 10~30V |
| Measurement Range | Default 5-10000m, optional 5-5000m or 5-80000m |
| Typical Accuracy | ± 10% (@ 25 ℃, 50% RH) |
| Resolution | 1m |
| Update Interval | 20s |
| Mean Time Between Failures (MTBF) | Greater than 18000h |
| Working Environment Temperature | -40~60 ℃ |
| Relative humidity at work | Not exceeding 95% (30 ℃) |
| weight | Less than 10kg |
| power consumption | 0.5W |
| output method | RS485 |
Product Application
- Road meteorological information system: used to monitor road visibility and provide guarantees for traffic safety.
- Fog detection network: used to monitor fog conditions and provide early warning for transportation, aviation, etc.
- Airport Meteorological System: Used to monitor airport visibility and provide support for aircraft takeoff and landing.
- Cooling tower smoke detection: used to monitor the smoke emissions of cooling towers and provide data for environmental protection.
- Meteorological Monitoring: Used to monitor changes in atmospheric visibility and provide data for meteorological forecasting.
- Port security: used to monitor port visibility and provide protection for ships entering and leaving the port.
Product Advantages
- High measurement accuracy: Advanced measurement technology is adopted, with high measurement accuracy and reliable data.
- Good stability: simple structure, good stability, high reliability, low energy consumption, easy use and maintenance.
- Strong anti-interference ability: Infrared LED light source, added filter design, anti light source interference, equipment surface anti-corrosion treatment, anti rainwater corrosion, internal circuit anti-interference design.
- Fully functional: It can continuously measure and output atmospheric visibility, and the instrument's DC power supply circuit has a dual design of anti reverse connection and self recovery insurance.
Product Selection Guide
When selecting, users can consider the following factors:
- Measurement range: Select the appropriate measurement range based on actual application requirements.
- Accuracy requirement: Select the appropriate measurement accuracy based on actual application requirements.
- Work environment: Choose the appropriate level of protection based on the installation environment.
- Output method: Select the appropriate data output method based on the data usage.
- Budget: Select the appropriate feature configuration based on the budget.
Product ordering
Users can order Modbus atmospheric visibility measuring instruments through the following methods:
- Contact our sales personnel: Our sales personnel will provide professional selection suggestions and quotations based on your needs.
- Online ordering through our company website: You can visit our company website to learn about product information and place orders online.
After sales Service
Our company provides free maintenance services for Modbus atmospheric visibility measuring instruments within a one-year warranty period. During the warranty period, if the instrument is damaged due to product quality issues, our company will provide free repair or replacement.
