Description
Overview

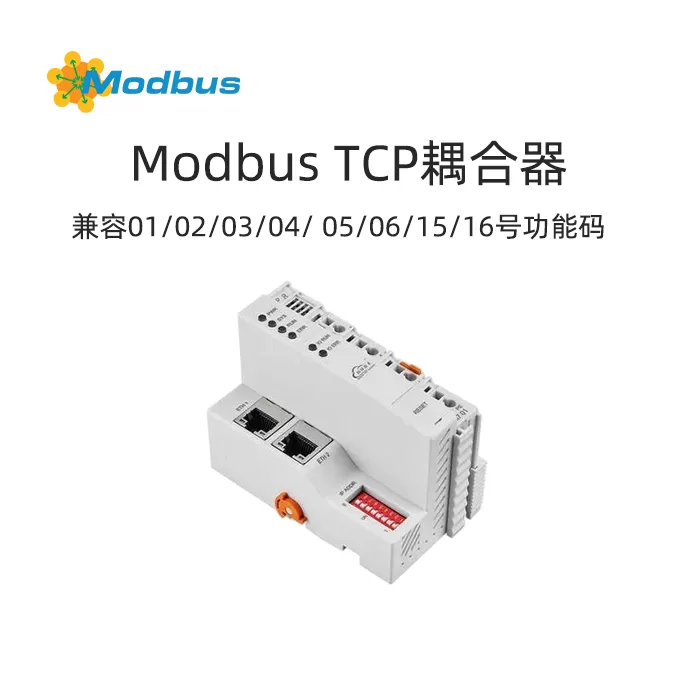

The Modbus TCP coupler BL200 adopts a web configuration and supports simultaneous access by 5 Modbus TCP clients. It is compatible with function codes 01/02/03/04/05/06/15/16 and supports a maximum sum of 8192 bytes for process data input and output. It can expand up to 32 M-series IO modules with different functions such as DI, DO, AI, AO, thermocouples, and thermal resistors. Adopting a high-speed backplane bus, with 32 slave stations fully loaded and a maximum scanning cycle of 10ms. The coupler comes with diagnostic function, which can monitor the communication status of the IO module in real time and provide a 2000mA drive circuit for the IO module.
Modbus TCP coupler BL200 can be adapted to Schneider, Siemens, Keyence Codesys, PLCOPEN, Huichuan, Delta and other Modbus TCP master stations are compact in structure and small in size, suitable for various industrial automation systems.
Functional Features
• Can accommodate up to 32 I/O modules;
• Supports industrial protocol Modbus TCP;
• The on-site side, system side, and bus side are electrically isolated from each other;
• Supports 2 x RJ45 interfaces, integrated switch function, can establish line topology, saving switches or hubs;
• Convenient wiring connection technology, screw free installation.
Technical Parameters
| Name | Parameters | Description |
| System Power Supply | Power Supply (System) | 24 VDC |
| Input Current (System) | Maximum 500 mA@24VDC | |
| Power Efficiency | 84% | |
| Internal Bus Voltage | 5VDC | |
| Coupling Consumption Current | maximum 300mA@5VDC | |
| I/O module consumes current | maximum 1700mA@5VDC | |
| Isolation protection | 500 V system/power supply | |
| site power supply | Power supply (on-site) | 24 VDC |
| Cross contact current of power supply (maximum) | 10 ADC | |
| Ethernet | quantity | 2 X RJ45 |
| transmission medium | Twisted pair cable, STP 100 Ω Cat 5 | |
| Maximum cable length | 100m | |
| rate | 10/100 Mbit/s | |
| Isolation protection | ESD contact: 8KV, surge: 4KV (10/1000us) | |
| system | clock rate | 300MHz |
| RAM | 64MB | |
| Flash | 128MB | |
| Number of I/O modules | Maximum 32 | |
| Mapping data points through serial module process (Modbus) | Bool : 4096 16 Bit : 2048 32 Bit : 1024 | |
| agreement | Modbus TCP | |
| Maximum number of connections | 15 Modbus TCP | |
| wiring method | Connecting Technology | Cage spring connection technology |
| Wire diameter | 0.08 mm² ⋯ 2.5 mm², AWG 28 ⋯ 14 | |
| Stripping length | 8 mm ⋯ 9 mm/0.33 in | |
| Environment | Operating temperature | 0 ⋯ 55 ° C |
| Storage temperature | -40 ⋯ 70 ° C | |
| Relative humidity | 5 ⋯ 95% non condensing | |
| Working altitude | 0 ⋯ 2000 m | |
| Protection type | IP20 | |
| Geometric dimensions | Width | 48mm |
| Length | 100mm | |
| Height | 69mm | |
| Material | Color | Light gray |
| Shell material | Polycarbonate, Nylon 6.6 | |
| Fire load | 1.239 MJ | |
| weight | 180 g | |
| Mechanics | Installation method | DIN-35 type guide rail |
| Certification | EMC | EN 55022: 2006/A1: 2007 (CE &RE) Class B IEC 61000-4-2 (ESD) Level 4 IEC 61000-4-3 (RS) Level 4 IEC 61000-4-4 (EFT) Level 4 IEC 61000-4-5 (Surge)Level 3 IEC 61000-4-6 (CS)Level 4 IEC 61000-4-8 (M/S) Level 4 |
BL200 ModBus TCP Distributed IO System Coupling Selection Table
| Model | Channel | Signal Type | Name |
| M1082 | 8 | NPN | 8-Channel Digital Input Module |
| M1081 | 8 | PNP | 8-Channel Digital Input Module |
| M2082 | 8 | NPN | 8-Channel Digital Output Module |
| M2081 | 8 | PNP | 8-Channel Digital Output Module |
| M3041 | 4 | Current | 4-channel analog input module |
| M4043 | 4 | Voltage | 4-channel analog output module |
| M5041 | 4 | Resistor | 4-channel RTD input module |
| M6021 | 2 | RS485 | 2-channel serial communication module |
| M701 | / | / | 24V power module |
| M801 | / | / | terminal module |
| BL200 | / | / | Modbus TCP I/O coupler |
| BL201 | / | / | Distributed Profinet bus coupler |
| BL202 | / | / | Distributed EtherCAT bus coupler |
| BL203 | / | / | Distributed Ethernet/IP bus coupler |
| BL205 | / | / | OPC UA edge computing I/O controller |
| BL206Pro | / | / | Multi protocol edge computing I/O controller |
| BL207 | / | / | Distributed BACnet/IP bus coupler |
